PNK PP 550H Piston vacuum pump
Motor power(50Hz): 0.32Kw
Pumping speed (50Hz): 68L/min
Extreme vacuum limit: -98Kpa
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK PP-H Series piston vacuum pumps Performance advantage
Specification parameters
| Technical parameter | Unit | Frequency | PNK PP 550H |
|---|---|---|---|
| Flow | L/min | 50 Hz | 68 |
| Pressure | Kpa | 50 Hz | -98 |
| Power | Kw | 50 Hz | 0.32 |
| Rotate speed | min-1 | 50 Hz | 1450 |
| Electric current | A | 50 Hz | 1.50 |
| Voltage | V | 50 Hz | 210/235 |
| Foot hole | mm | 6 | |
| Temperature | ℃ | 5-40 | |
| Noise | (ENISO2151) | dB(A) | 56 |
| Weight | kg | 6.0 | |
| Mounting dimensions | mm | L147*W83 | |
| Overall dimension | mm | L237*W97*H162 |

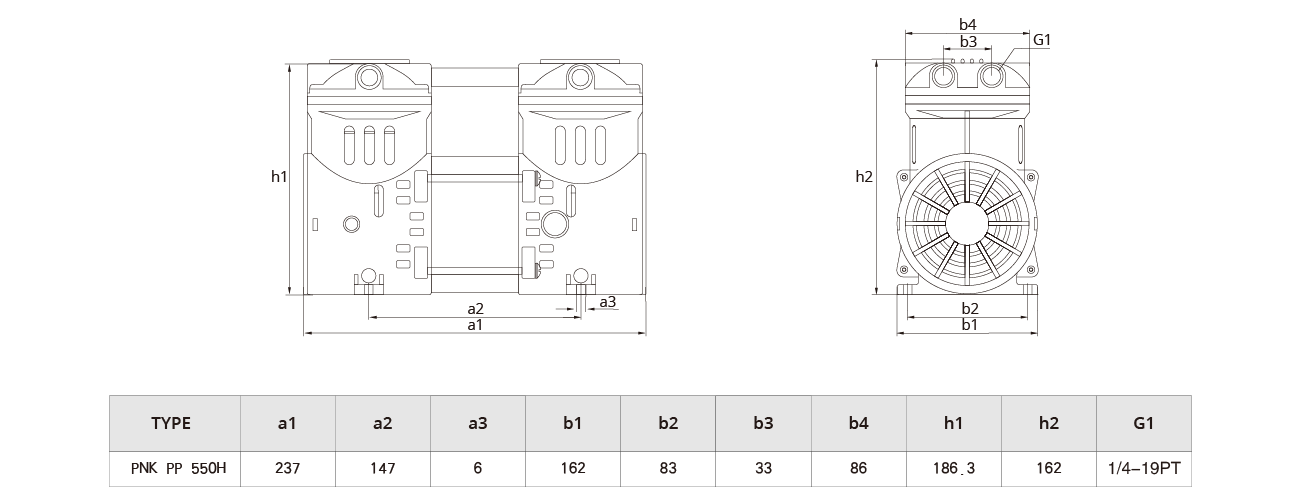

Mounting dimensions

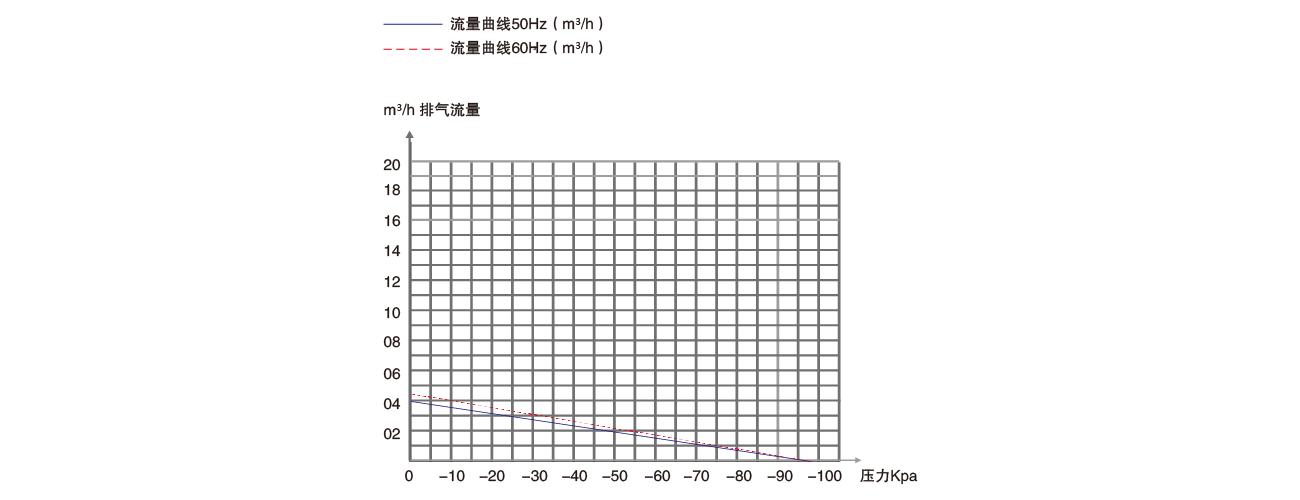

Performance curve
Parts
Download
