PNK DSL 600 Scroll vacuum pump
Scroll dry pump with excellent performance
Motor power: 0.75Kw
Pumping speed: 30m³/h
Extreme vacuum limit: 0.008 mbar
Would you like to know more？
Please contact us directly(China PRONOTEK）：
Download product sheet
PNK DSL Series scroll pump Performance advantage
Reliable
Strong and durable structure, highly durable fiber reinforced epoxy resin blade, proven rotary blade technology, long service life
Stable
Strong and durable structure, highly durable fiber reinforced epoxy resin blade, proven rotary blade technology, long service life
Ultra low noise
Strong and durable structure, highly durable fiber reinforced epoxy resin blade, proven rotary blade technology, long service life
Specification parameters
| Technical parameter | Unit | PNK DSL 600 |
|---|---|---|
| Rated speed | rpm | 1750 |
| Theoretical pumping speed | m3/h | 30 |
| Extreme vacuum limit | mbar | 0.008 |
| Inlet flange | - | KF40 |
| Outlet flange | - | KF25 |
| Input voltage | V | Single phase 100-240/Triple phase 200-460 |
| Overall dimension | mm | 491×305×401（L×W×H） |
| Motor power | W | 750 |
| Water vapor treatment capacity | g/h | 60 |
| Leakage rate | mbar· l/s | ﹤1×10-4 |
| Noise level | dB(A) | 63 |
| Cooling mode | - | 风冷 |
| Operating ambient temperature | ℃ | 5至40 |
| Weight | kg | 44 |

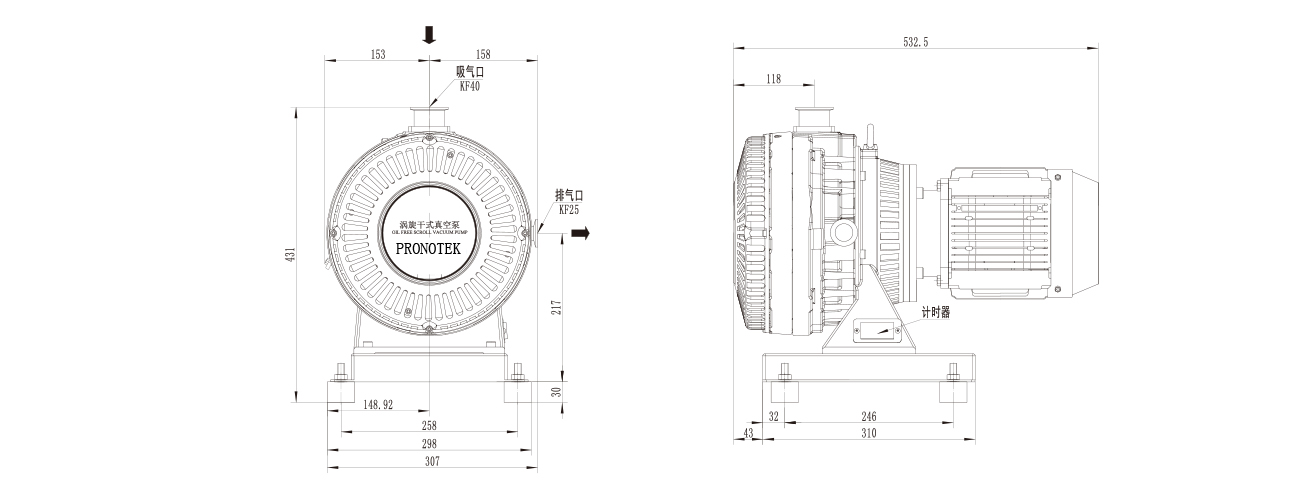

Mounting dimensions

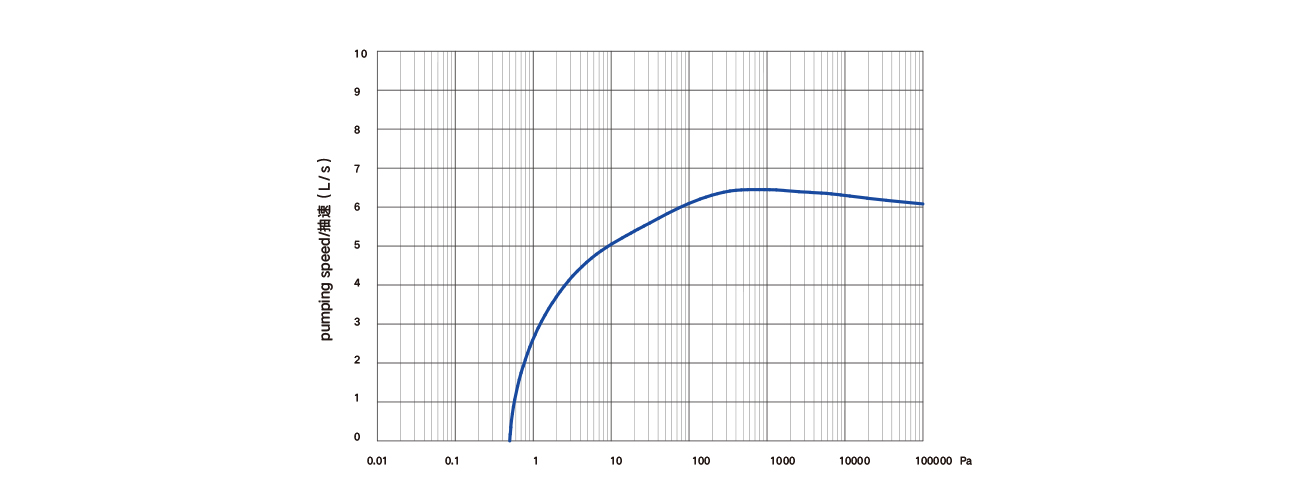

Performance curve
Parts
Download
